Self-Activating Flood Barrier Commissioning

Flow Defence provides commissioning support for self-activating flood barrier systems used in commercial basement entries, residential driveways and other flood prone access points.

Our commissioning process is designed to confirm the barrier system has been installed correctly, critical components are in place and the system is ready for handover.

To learn more about system operation, opening layout and ongoing servicing, see our How Self-Activating Flood Barriers Work, Self-Activating Flood Barrier Sizing & Setout and Self-Activating Flood Barrier Maintenance pages.

We support commissioning for both:

• precast concrete chamber installations
• cast in-situ concrete chamber installations

Commissioning Confirms the System Is Ready for Handover

Commissioning is the final stage of the installation process. It focuses on checking the completed flood barrier system, confirming key components are correctly fitted and preparing the system for practical use.

This includes seal alignment, barrier clearances, guide components, electrical coordination and other final completion items required before handover.

For a broader overview of system suitability and passive operation, see Self-Activating Flood Barrier and How Self-Activating Flood Barriers Work.

What Our Commissioning Process Covers

Seal and Barrier Checks

We check the alignment of the vertical seals, horizontal support angles and barrier spacing to confirm the system has been installed correctly.

Guide and Top Plate Checks

We position the top plate guide lugs and confirm the HDPE slider is trimmed to suit the seal arrangement and barrier movement.

Completion Items

We coordinate final completion requirements including electrical connections and warning light interface with the client.

Handover Readiness

Once commissioning items are complete, the system is prepared for building handover and ongoing site use.

For related construction-stage requirements and project layout guidance, see Self-Activating Flood Barrier Installation and Self-Activating Flood Barrier Sizing & Setout.

Typical Commissioning Items Include

• alignment of vertical seal angles
• silicone application and fixing of seal components
• installation of horizontal support angles
• confirmation of even barrier spacing between side walls
• positioning of top plate guide lugs
• trimming and fitting of HDPE slider
• installation of top plate guide lug fixings
• coordination of final electrical connections
• coordination of warning light connection with the client

For ongoing servicing and post-handover support, see Self-Activating Flood Barrier Maintenance.

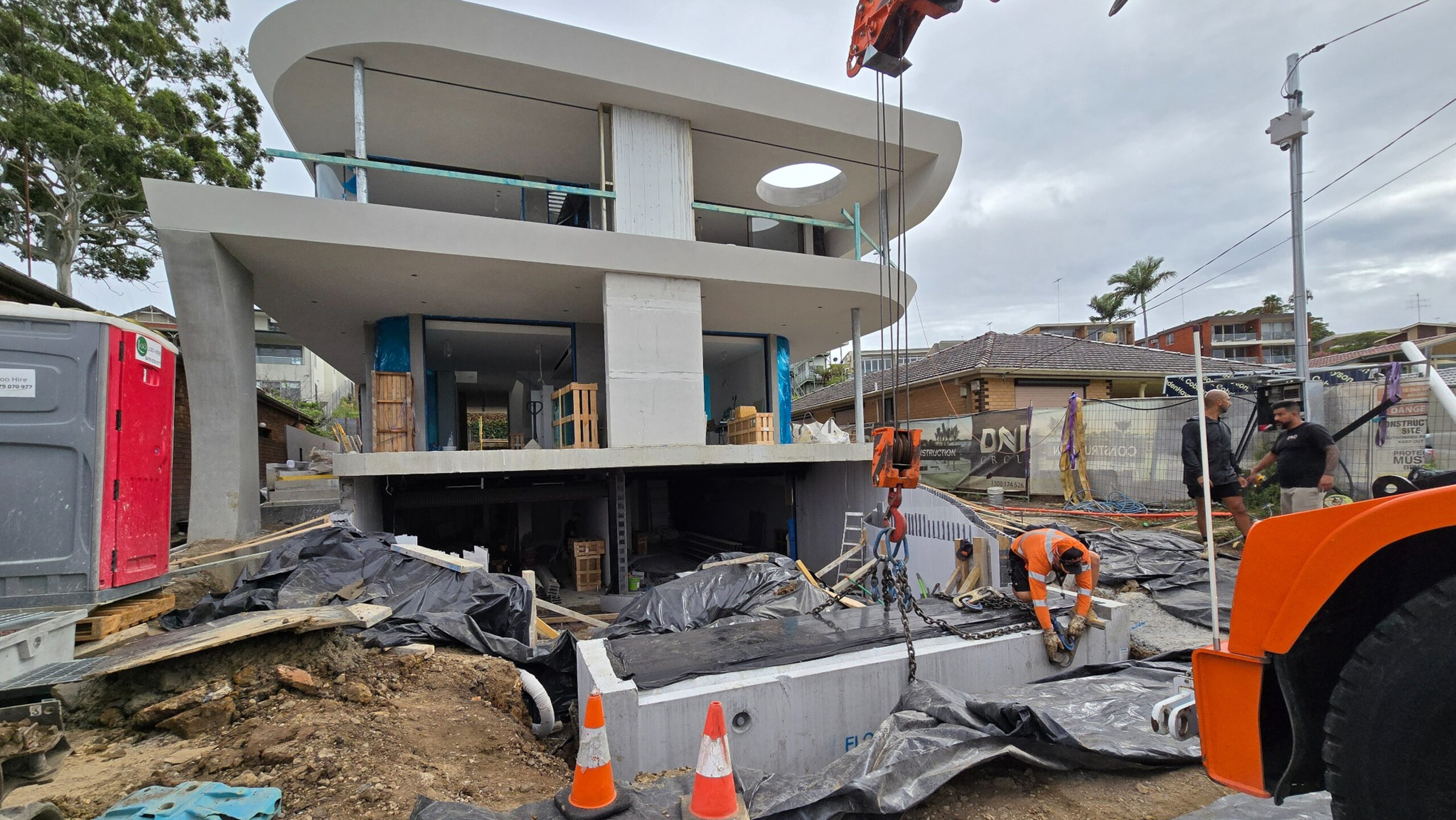

Precast Concrete Chamber Commissioning

For precast concrete chamber projects, commissioning is generally completed on a separate site visit.

This is because the chamber is installed first, and the surrounding side walls are typically constructed after the chamber has been placed. The final commissioning works cannot be completed until those side walls are in place and ready to receive the seal and guide components.

This makes precast commissioning a staged process that depends on overall construction sequencing.

For related construction sequencing requirements, see Self-Activating Flood Barrier Installation.

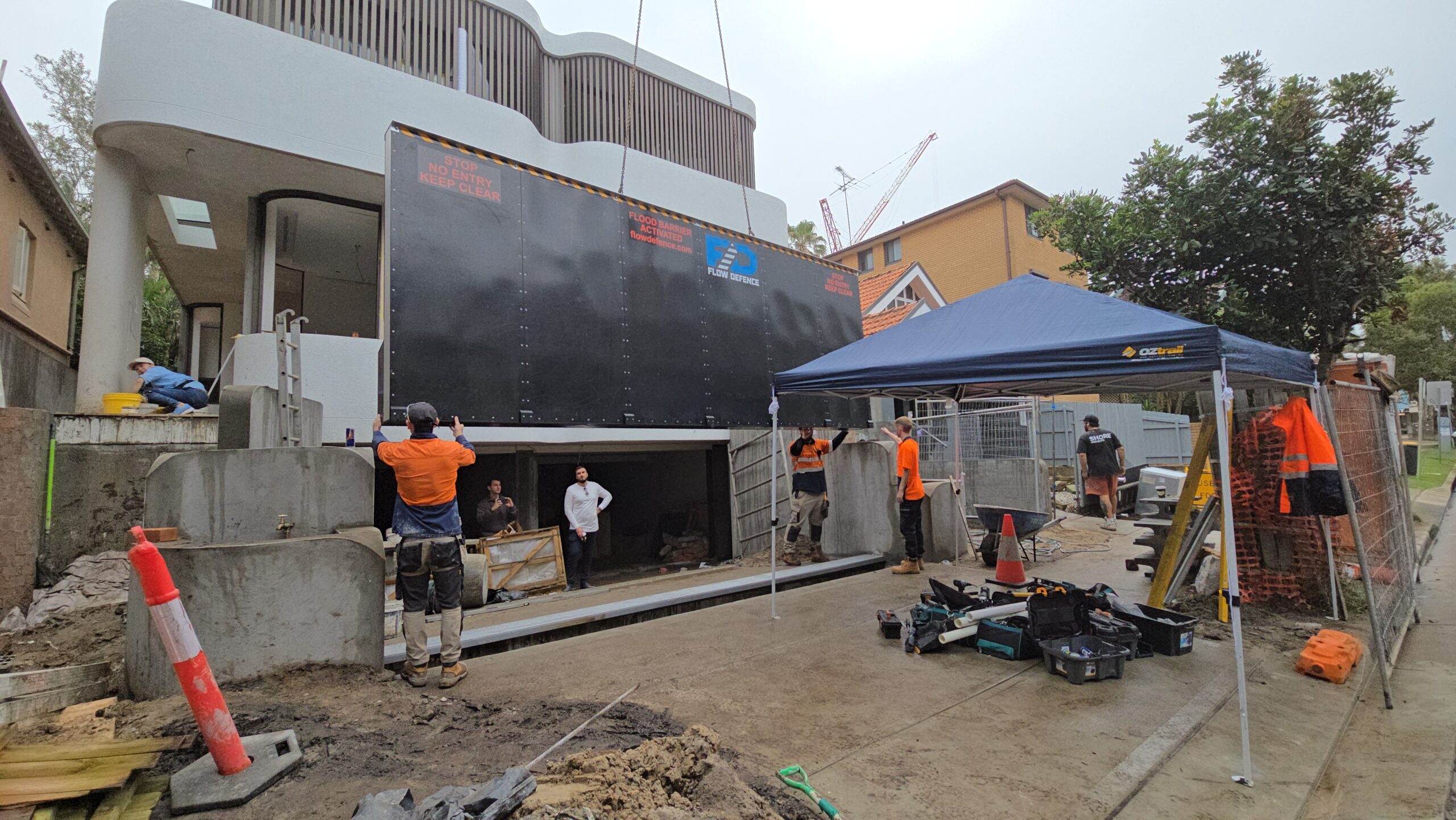

Cast In-Situ Concrete Chamber Commissioning

For cast in-situ concrete chamber projects, commissioning can often be completed during the same site visit as the flood barrier installation.

This is possible where the side walls have already been constructed before the flood barrier installation begins. In that case, the final commissioning items can be completed without waiting for additional wall works or a return visit.

Where the side walls are not yet ready, commissioning may still need to be completed at a later stage.

For chamber planning and opening-specific layout guidance, see Self-Activating Flood Barrier Sizing & Setout.

Barrier Operation During Testing

The self-activating flood barrier is designed to float when water enters the chamber and rises to the required level.

As part of our commissioning process, Flow Defence does not float the barrier during testing.

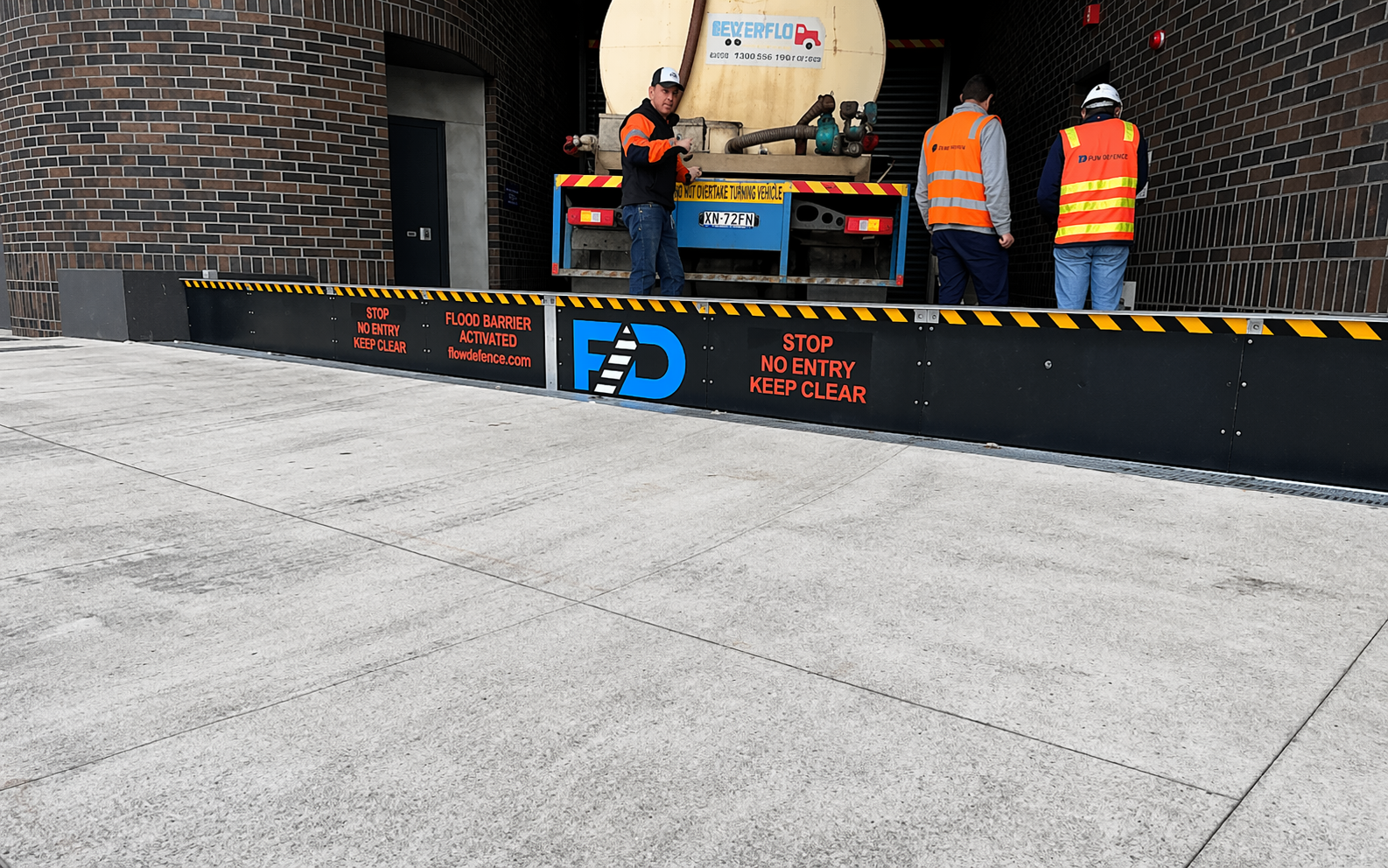

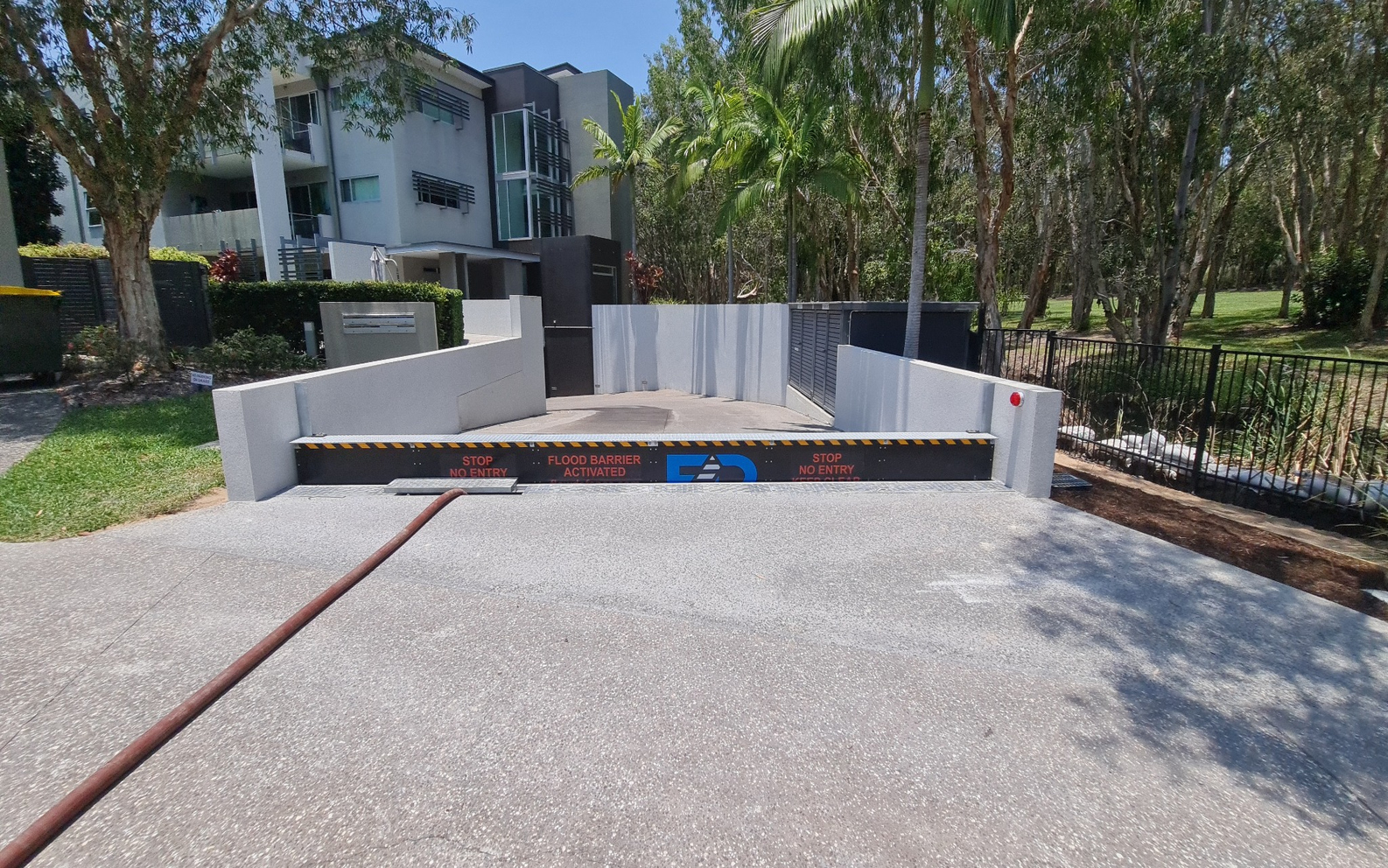

If the client wishes to observe the barrier rising, this can be carried out separately by isolating the pumps and filling the chamber using a hose or water truck once site conditions are suitable.

Provided the barrier is unobstructed and no load is placed on top of it, the barrier will float as intended.

For a step-by-step explanation of barrier movement and passive operation, read How Self-Activating Flood Barriers Work.

Why Commissioning Matters

Commissioning helps confirm that the self-activating flood barrier system is properly completed, ready for operation and aligned with the project requirements.

It also provides a clear point for final checks before the system moves from construction into building handover and ongoing maintenance.

For related layout planning and ongoing servicing guidance, see Self-Activating Flood Barrier Sizing & Setout and Self-Activating Flood Barrier Maintenance.

Commissioning Support From Flow Defence

Flow Defence works with builders, contractors, consultants and asset owners to support self-activating flood barrier commissioning for both precast and cast in-situ concrete chamber applications.

Our commissioning process is practical, structured and matched to the construction sequence of the project.

You can also review our Self-Activating Flood Barrier Installation and Self-Activating Flood Barrier Maintenance pages for related project support.

Need Help With Self-Activating Flood Barrier Commissioning?

Speak with Flow Defence about commissioning support for your self-activating flood barrier project.

We can help you plan the right commissioning pathway for precast and cast in-situ concrete chamber applications and prepare the system for handover.

You can also review our Self-Activating Flood Barrier, Self-Activating Flood Barrier Installation and Self-Activating Flood Barrier Sizing & Setout pages.
